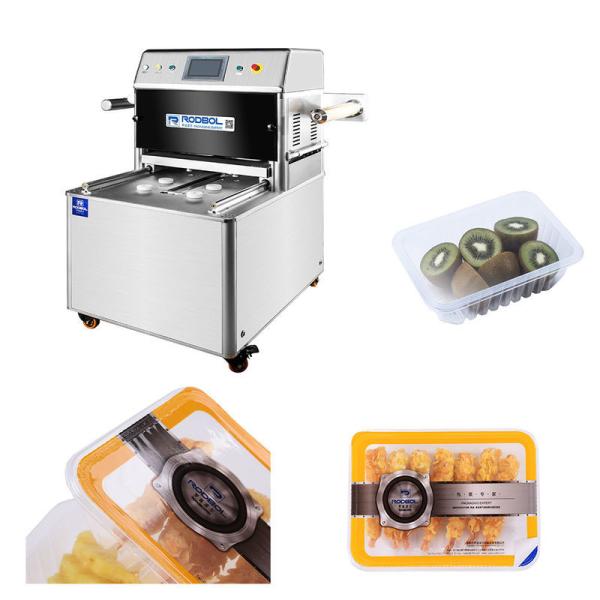

Touch Screen Pneumatic MAP Packaging Machine , Vertical Vacuum
Packaging Machine
MAP machine:
RDL480P is known for its performance and simplicity of use. This
MAP packaging machine is also called nitrogen filling packaging
machine, lock fresh packaging machine, etc., modified atmosphere
packaging machine is to use oxygen, nitrogen, carbon dioxide and
other inert gases to mix and replace the air inside the box to
achieve the purpose of air conditioning.
This machine adopts the machine, electricity, gas joint control, by
PLC with the touch screen, the various parts of the action and
control parameters can be set through the PLC, modify. Simple
operationIt is suitable for modified atmosphere packaging of
variety kinds foods such as cold fresh products and cooked
products.The machine can support different tray sizes and shapes,
different material types (e.g. CPET, PP, PET, PVC, Foil, Paper) and
even with different compartments.
Atmospheric fresh air generally consists of carbon dioxide (CO2),
nitrogen (N2), oxygen (O2) and a small amount of specialty gases.
CO2 gas has the function of inhibiting the growth and propagation
of most spoilage bacteria and molds and is the main antibacterial
component in the fresh air; O2 can restrain the growth of most
anaerobic bacteria, maintain the flesh color of fresh meat and
maintain aerobic respiration of fresh fruits and vegetables, and
maintain the freshness ; N2 is an inert gas, and food does not work
as a filling gas, and CO2, O2 and special gas composition of fresh
gas. Different food fruits and vegetables, fresh gas composition
and the proportion is also different.
Specification:
| Name | Pneumatic MAP Packaging Machine Sealer Packaging Machine |
| Max. Tray dimensions (mm) | 550X390X85 |
| Max. Film width (mm) | 450 |
| Max. Film diameter (mm) | 260 |
| Power supply(V/Hz) | 220/50 or customize |
| Power (kw) | 3.5/5 |
| Air Exchanging Rate (%) | ≥99% |
| Gas mixture precision | ±1% |
Advantages:
1. The art of cutting the inner edge to enhance the brand value of
the product
2. Simple operation, all with one click, all packaging can be
completed
3. Low-voltage electrical appliances, mixing systems, start-up
devices are using the global first-line brand
4. Advanced replacement technology, the residual oxygen content is
stable below 0.5%.
5. Industrial design, the highest quality materials, carefully
create each corner
6. Special multi-box sealing film cutter control system, to ensure
that each box of packaging is beautiful
Component Identification
This equipment is composed of mainframe; film feed system, upper
and lower sealing mold, gas mixing system, Pneumatic drive system,
Temperature Control System and electrical controlling components.
①Automatic sealing and cutting system
②Lower sealing mold (carrier)
③Film feed system
④Gas mixing system
⑤Control panel
Precautions during packing
1.Packing material: Wooden case.
2.Packing sequence:
Put the wood base on the ground. Then, put the machine on it. Next,
pack the machine with plastic film and put vibration-absorbing
board around the machine. Then, assemble the wood case. At last,
Use nails to fix the wood base and case.
