Vacuum Seal Packaging Machine 304 Stainless Steel Modified
Atmosphere Packaging
MAP machine:
Modified Atmosphere Packaging (MAP) can effectively solve the
problem of quality deterioration of vacuum-packed
food, extend the shelf life of food, and reduce food circulation
cost. With the change of people's consumption
consciousness, modified atmosphere packaging technology is more and
more recognized and welcomed by
consumers for its superior safety and freshness preservation
function. The principle of modified atmosphere
packaging is to use modified atmosphere fresh gas (2-4 kinds of gas
are mixed according to the characteristics of
food), replace the air in the box or bag, change the external
environment of the food in the box (bag), and inhibit
bacteria ( The growth and reproduction of microorganisms slow down
the metabolism of fresh fruits and vegetables,
thereby extending the shelf life or shelf life of food. Take the
preservation of fruits and vegetables as an example:
Fresh fruits and vegetables still breathe after picking, consume O2
to produce CO2, gradually increase the content
of CO2 in the environment and reduce the concentration of O2. The
use of highly permeable plastic film can
exchange gas with the atmosphere, supplementing the O2 is consumed
and CO2 is discharged. When the rate of
gas penetration into the film is equal to the breathing speed of
the fruits and vegetables, the gas in the packaging
bag reaches a certain equilibrium concentration, which can maintain
a weak breathing rate for the fruits and
vegetables without producing anaerobic breathing, thereby delaying
the maturity of the fruits and vegetables and
keeping them fresh. The use of modified atmosphere packaging can
ensure the taste, nutritional content and
freshness of food without using preservatives and additives.
In the 1980s, the application of modified atmosphere modified
packaging for British retail meat greatly promoted the
research and application of advanced technologies and equipment for
modified atmosphere packaging. In the late
1990s, China began to develop food modified atmosphere packaging
technology and equipment. Shanghai meat
processing enterprises introduced foreign modified atmosphere
packaging equipment and developed fresh pork
modified atmosphere packaging market, which laid the foundation for
the market application of modified
atmosphere packaging in China. At present, compared with the
international advanced level, there is still a large
gap between modified atmosphere packaging technology and equipment
in China, which is mainly manifested
in low equipment accuracy, poor stability, and low degree of
automation. For easily oxidized food, the increase of
the oxygen content in the packaging container may easily lead to
oxidative deterioration of the food and rapid
proliferation of aerobic bacteria, and shorten the shelf life of
the food. How to control the oxygen content of easily
oxidizable food packaging containers, improve productivity and
automation, and reduce packaging costs has
become a technical challenge for modified atmosphere fresh-keeping
packaging that needs to be solved.
Product details:
The RDT320P tray sealer is based on tried and tested technology; it
combines excellent seal integrity and pack
presentation with flexibility, quick changeovers and user-friendly
operation in a compact and hygienic design.
It is particularly suitable for packing vegetable and fruit in a
protective atmosphere, particularly meat, thanks to the
patented gas exchange system. They package fresh, refrigerated,
retort or frozen food products at a full range of
outputrates. MAP and VSP systems produce attractive, leak-proof,
tamper-evident packages with greater seal
integrity and extended shelf life. They are perfect for all types
of sausage, meat, poultry, seafood, prepared food
and cheese packaging. It is also becoming increasingly popular in
fresh-cut produce, like pre-packaged salads
and fruit, for convenience, quality and more variety.if you're
shopping for any of these items at the grocery store,
they've been packaged using MAP. Learn more about this growing
packaging trend when you reach out to an
Atlas Copco expert.

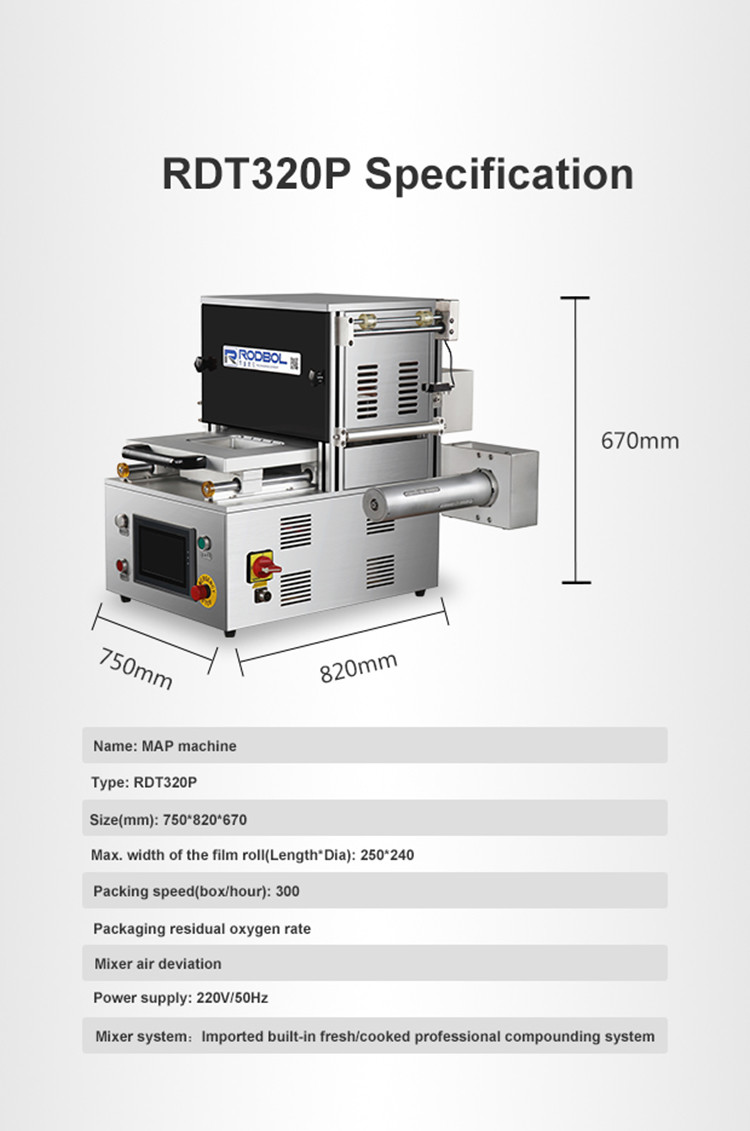

Specification:
| Weight | 110kg |
| Power | 220/50 V/Hz |
| Pressure(MPa) | 0.6-0.8 |
| Material | Stainless steel+Aluminum alloy |
| Air replacement system | RODBOL positive pressure |
| Cutter part material | Special stainless steel |
| Pneumatic system | SMC |
| Air Exchanging Rate (%) | ≥99% |
| Capacity | 280-300pcs/h |
RDT320P Advantage:
1. Sophisticated replacement system, the residual oxygen content of
each box is less than 0.5%, which is the basic
guarantee of the freshness retention
2. Germany imported special mixing system, the mixing error is less
than 1%. Stable freshness cycle
3. Simple but not simple, it can pack 300 servings per hour,
improving efficiency and super low cost
4. Multifunctional control system, convenient for operation
5. 220V plug and play, no need to configure any other equipment, no
maintenance, low cost of use
6. Small and exquisite, carefully create every detail, stable and
durable
FAQ:
1. Is your company manufacture or trading company ?
We are factory and we have about 10 years experience in packing
machine line.
2. Can i visit your company ?
Sure, welcome to our company.
3. Can you do OEM?
Yes,we can do OEM and also can print your logo on machine.
4. Did your machine approved CE?
Our all machines were had approved CE.
5. Do you have any stock of standard machine?also regarding the
customized machine.
Yes,we always have stock of standard machine.we can shipping it
within 3days after get your payment.
6. Can you help us contact the shipping agent in your loading port?
Of course,we have own best shipping forwarder who always provide
the best services&price
Detailed images:
